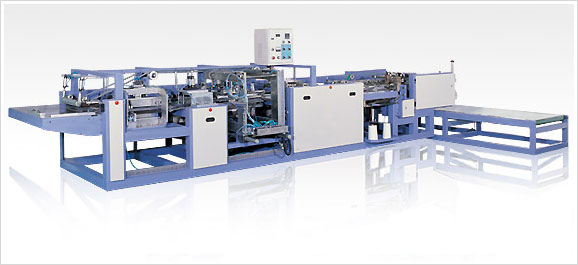

Valve Forming Line (Model : VS-20)

Valvo FOrming Line(L-Shapo Cutting, Valve Forming Top Sewn)

Model No :VS-20                                                                                 Download Catalog

Valve Forming Line

This line is designed to process product from #GS-2002, finishing with feeding valve forming and mouth fold & sew, sectional elements including:

Feeding table with optical position control.

"L" shape cold cutting unit.

Automatic "feeding valve" forming unit.

Mouth fold & sewn unit.

Automatic count stacker unit.

Major Specification of VS-20

Processing Bag Width : 320-480 mm Applicable

Processing Bag Length : 680-1180 mm Applicable

Printing Range : 17-19 bags / minute

Dimensious of Valve Saek

Size
Min (mm)
Max (mm)

》 A
70
110

》 B
50
120

》 Gusset Depth D
40
90

》 Sack Width W
350
480

》 Valve Length VL
120
200

》 Valve High VH
100
140

》 Sack Length L1
680
1180

》 Sack Length L
680
1000

VL=(A+D)-35
VH=A+B

Photos

Valve Forming Line
