Gusset-Cutting-Sewing Line (Model : GS-2002)

Model No : GS-2002/EM/CH                                                             Download Catalog

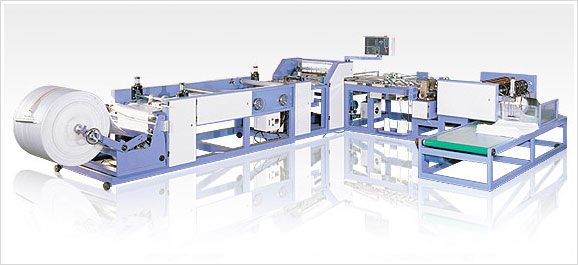

Gusset-Cutting-Sewing Line

Gusset-Cutting-Sewing Line

This Gusset-Cutting-Sewing Line is design to flawlessly form side Gesset with bottom fold & sewn, sectonal element including:

Un-winding unit equipped with EPC

Micro-Perforatin unit.

Gusset Forming unit (equipped Infrared Rays for forming quality).

Mark sensor for printed fabric roll.

Cutting unit equipped both cold cutter and hear cutter.

Bottom fold & sewing unit.

Finished bag automatic count stacker delivery unit.

Printing Output : 32-48 bags / minute

Processing Size of the Gusset Bag

Size
Gusset Device
- Standard -
Gusset
- For Small Bag-
》Bag width before gusset
560-700 mm
480-620 mm
》Bag width after gusset
400-600 mm
380-500 mm
》 Gusset deep
50-90 mm
50-90 mm

(GS-2002 equip only unit of Gusset Device, the other unit shall be optional)

Major Specification of GS-2002

Processing Bag Width : 300-850 mm Applicable

Processing Bag Length : 450-1400 mm Applicable
