PP Flat Yarn Making Machine
PP Flat Yarn Making Machine
PP Flat Yarn Making Machine

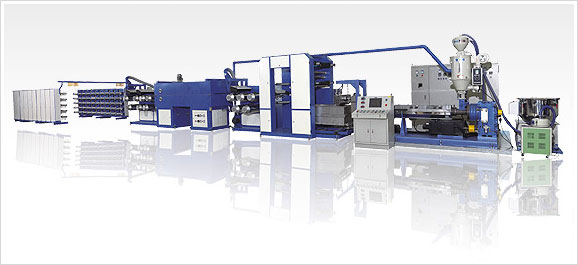

PP/PE FLAT YARN MAKING LINE
Excellent design, reliable finishing quality, complete & efficient after-sales service, will be your optimum business choice.
Feature
Screw, T-DIE adopt high quality alloy steel with hardness treatments.
Equip High Level Synchronized Control System and Touch Screen Operation Interface for easy-operation.
Auto Thermo Control adopts Ceramic Heater + SCR Control
Double Layer (Upper & Lower) Heating Oven, increase the yarn quality and meet the standard stretching yarn strength.
Opertional Device
Non-Stop Auto Screen Change
Fibrillation Device
Water Cooling Chiller
Cooling Tower
Main Specifications
Model
TL80-90H
TL100-170H
TL120-200H
》 SCREW DIAMETER & L/D
Ø80 MM, 32 /1
Ø100 MM, 32 /1
Ø120 MM, 32/1
》 CAPACITY
160 KGS/HR
600 -1000 DENIER)
250 KGS/HOUR
600 -1000 DENIER)
300 KGS/HR
(600 -1000 DENIER)
》 MAIN MOTOR
75 HP
100 HP
125 HP
》 DIE LENGTH
650 MM
1150 MM
1280 MM
》 FILM WIDTH
550 MM
1050 MM
1180 MM
》 NUMBER OF WINDERS
90 PCS
170 PCS
200 PCS
》 APPLICABLE BOBBIN SIZE
40 x 35 x 220 L
40 x 35 x 220 L
40 x 35 x 220 L
》 LINE SPEED
MAX. .300 M/MIN
MAX. .300 M/MIN
MAX. .300 M/MIN
》 FILTER
LONG LIFE FILTER WITH SPARE FILTER
LONG LIFE FILTER WITH SPARE FILTER
LONG LIFE FILTER WITH SPARE FILTER
》 COOLING METHOD
CHILL WATER
CIRCULATION
》 SHIPPING TOTAL CONTAINER
40 x 2
40 x 2
40 x 2 20x1
Photos
